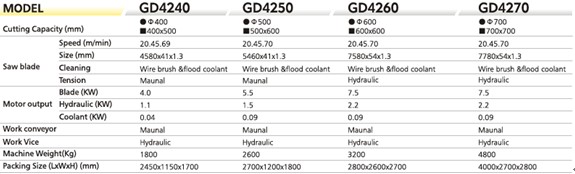

| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| GD4240/70 |
Φ400
□400x700 |
20/45/69 |
5570*41*1.3 |
4.0 |
2450*1150*1700 |

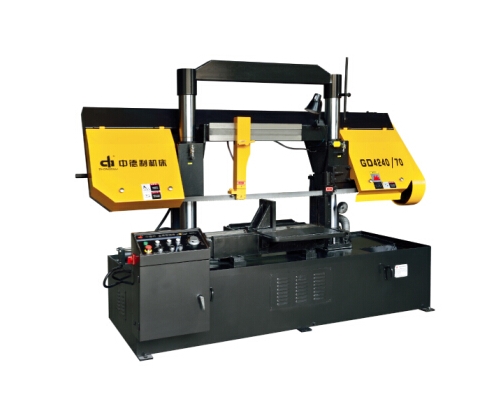

GD4270
Square Column
Horizontal
Metal Band
Sawing Machine
Main features of the machine
•The hydraulic pressure controls the speed of saw in and out,
the tension of blade and the clamp of the workpiece.
•Gantry structure, rigidity is good. Controlled by two cylinders,
materials in and out steadily.
•Brush paring automatically, increase the life- span of the saw blade.
•The feeding roller and supporting roller are driven motorizedly.
Product name:GD4240/70
Publish time:2010-12-8 0:00:00
|
