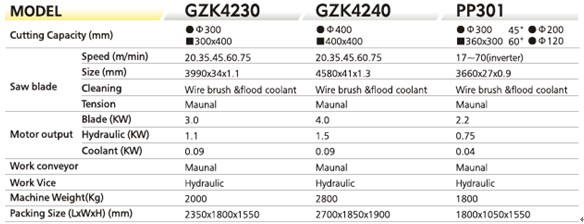

| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| PP301 |
Φ300 45° Φ200 □360x300 60° Φ120 |
17~70m/min |
3660*27*0.9 |
2.2 |
1800*1050*1550 |

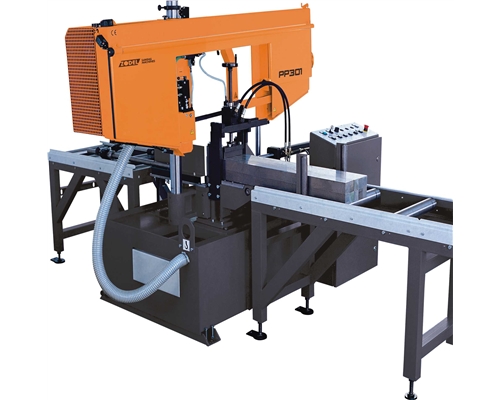

PP301
Doubl- column
Horizontal Metal Band
Sawing Machine
Main features of the machine
·Double- column structure.
·Clamped by hydraulic pressure vise
The hydraulic pressure controls the saw in and out.
·Reasonable oriented head structure lengthen the saw
blade’s service life.
Product name:PP301
Publish time:2010-12-8 0:00:00
|
