| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| H-4030 |
Φ300 |
20/35/45/60/75 |
3505*27*0.9 |
2.2 |
1700*650*1180 |

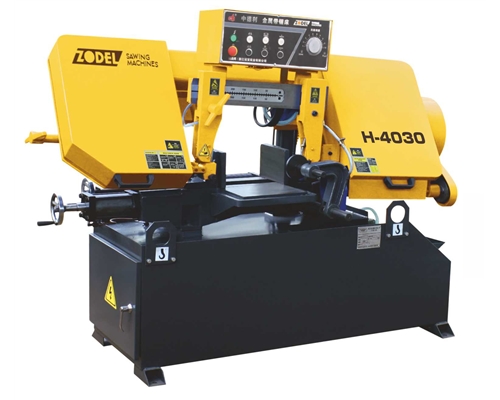

H4030
Horizontal
Metal Band
Sawing Machine
Main features of the machine
•High-strength belt wheels are subjected to precision balance calibration,
featuring stable running and small vibration.
•Accurately processed drive worm-wheel boxes have long service life
and run in low noise.
•Optimized cutting conditions can be set by using equilibrium- type hydraulic
cylinders and precision adjusting valves to ensure saw blade’s service life.
•Closed oil tanks ensure stable cutting, and drawer-type structure
conveniences maintenance.
•Powered steel brush can clean chips more thoroughly and prolong
saw blade’s service life.
•The hydraulic system stops automatically in cutting process.
Product name:H-4030
Publish time:2010-12-8 0:00:00
|
