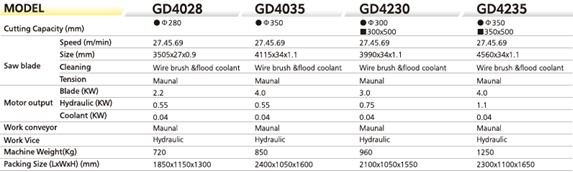

| Models |
Cutting range
(mm) |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| GD4230 |
Φ300
□300x400 |
27/45/69 |
3990*34*1.1 |
3.0 |
2100*1050*1550 |

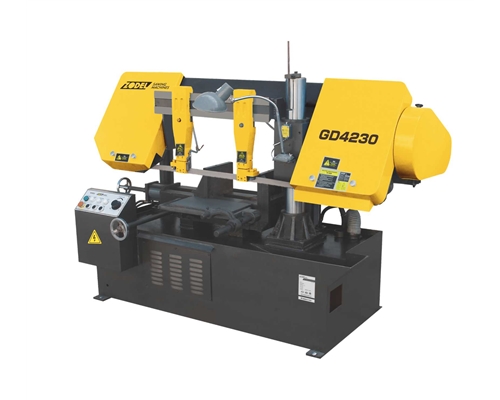

GD4028
GD4230
Horizontal
Metal Band
Sawing Machine
Main features of the machine
•Hydraulic pressure control the speed of saw in and out, stepless speed regulation.
•The saw blades adopt roll bearing and oriented by tungsten carbide which extend the
blade’s service life.
•It’s convenient to switch between accelerate and cutting, improve work efficiency.
•Can make compress device as per requested,
small materials can be cut as a bunch, be more efficiency.
Product name:GD4230
Publish time:2010-12-8 0:00:00
|
